Horizontal Transition Thrust 100 Kg

Barka

£751.00 - £999,999.00
Write a Review
SKU:
Horizontal Transition Thrust 100 Kg

This product is made to order with a 2-4 week lead time

Adding to cart… The item has been added

Cylinder, piston and brackets in anodized light alloy.

  • Struts with a high transition speed (36 mm/sec), therefore suitables for long strokes, but not to lift loads.
  • The struts are equipped with an adjustable magnetic end of stroke.
  • Available as a pair.
  • Supplied with an electronic control box for each strut to control, protect against the overloads and 1.30 m power cable.
  • Available on request - version with adjustable magnetic end of stroke.
  • It's necessary to add a 3 positions switch that will automatically return to OFF state.
  • An acoustic/flashing movement warning is available on request.
  • Available for 12 or 24V DC power.

HIGH SPEED VERSIONS: Ideal for handling structures with long stroke due to their high travel speed, not suitable for lifting.

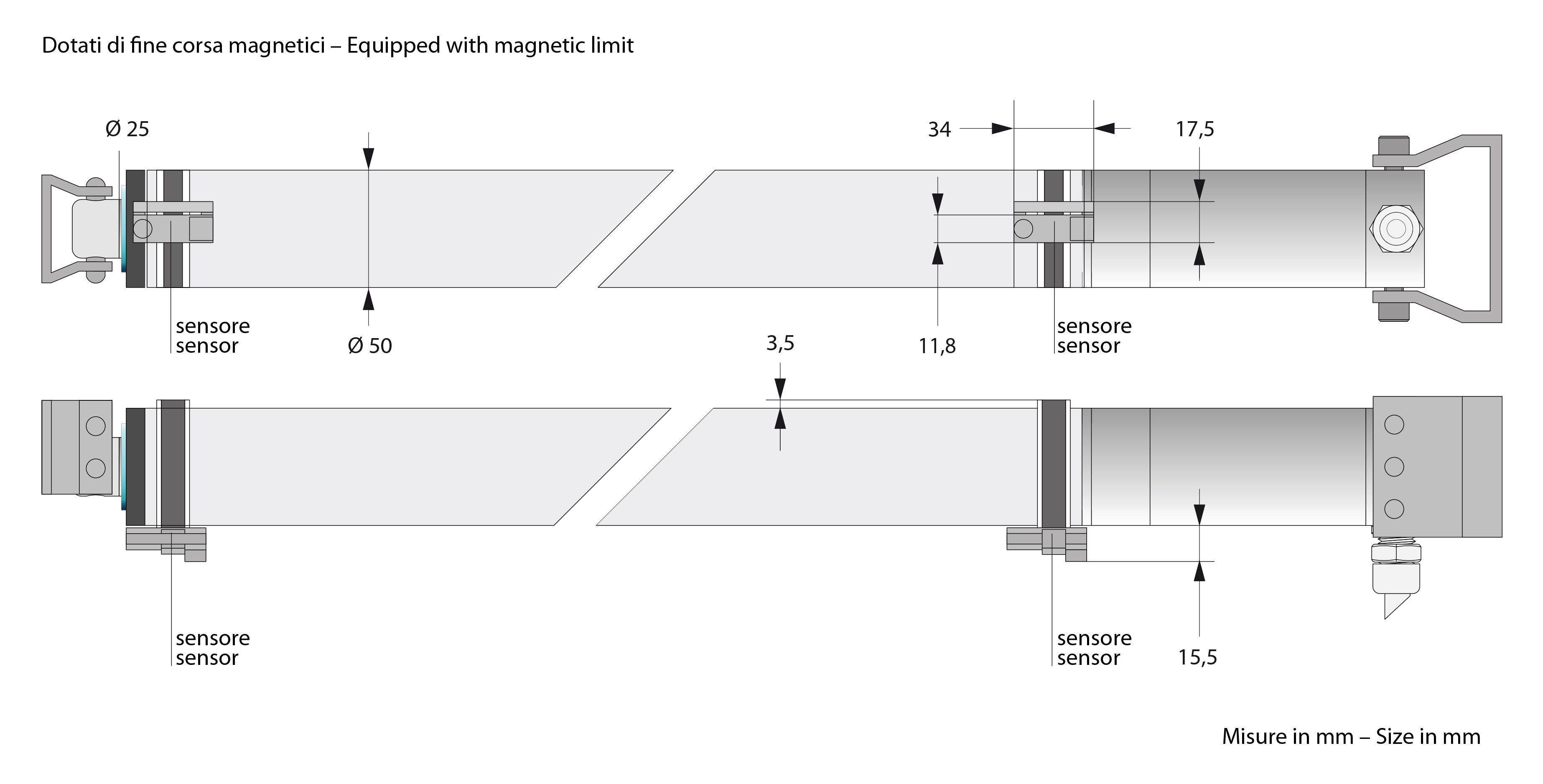

It is essential that long struts are properly located if positioned horizontally to prevent flex. Equipped with magnetic limit.













ENCODER: Struts for installation in pairs, equipped with encoded electronics and control unit to obtain a perfect synchronization, even when subject to different loads. It is possible, where permitted by law, to store up to four different and independent end positions, pre-set by the user at the time of installation, selectable with just a short press of a single button. Can also be used individually when such a precise movement is required, defining a different points of start and end of stroke. Come with backlit push button control and programming. Optional extension cable of 2 - 5 or 8 m.

Available with strokes from 100 to 2900 mm.


Articolo
Item
Installazione
Mounting
Effetto
Push
Sincro
Synchro
Corsa
Stroke
Volt Peso
Weight
Codice
Code
709701/F/12   doppio / push-pull fine corsa / end of stroke 970 mm 12 5 Kg 09.64.09701
709701/F/24   doppio / push-pull fine corsa / end of stroke 970 mm 24 5 Kg 09.64.09702

714701/F/12   doppio / push-pull fine corsa / end of stroke 1470 mm 12   09.64.14701
714701/F/24   doppio / push-pull fine corsa / end of stroke 1470 mm 24   09.64.14702

719701/F/12   doppio / push-pull fine corsa / end of stroke 1970 mm 12   09.64.19701
719701/F/24   doppioo / push-pull fine corsa / end of stroke 1970 mm 24   09.64.19702

ES709701/12   doppio / push-pull encoder 970 mm 12   09.68.09701
ES709701/24   doppio / push-pull encoder 970 mm 24   09.68.09702

ES709701/2/12 coppia / pair doppio / push-pull encoder 970 mm 12 12 Kg 09.70.09701
ES709701/2/24 coppia / pair doppio / push-pull encoder 970 mm 24 12 Kg 09.70.09702

ES714701/12­   doppio / push-pull encoder 1470 mm 12   09.68.14701
ES714701/24   doppio / push-pull encoder 1470 mm 24   09.68.14702

ES714701/2/12 coppia / pair doppio / push-pull encoder 1470 mm 12   09.70.14701
ES714701/2/24 coppia / pair doppio / push-pull encoder 1470 mm 24   09.70.14702

ES719701/12   doppio / push-pull encoder 1970 mm 12   09.68.19701
ES719701/24   doppio / push-pull encoder 1970 mm 24   09.68.19702

ES719701/2/12 coppia / pair doppio / push-pull encoder 1970 mm 12   09.70.19701
ES719701/2/24 coppia / pair doppio / push-pull encoder 1970 mm 24   09.70.19702
